Product Description
Product description:

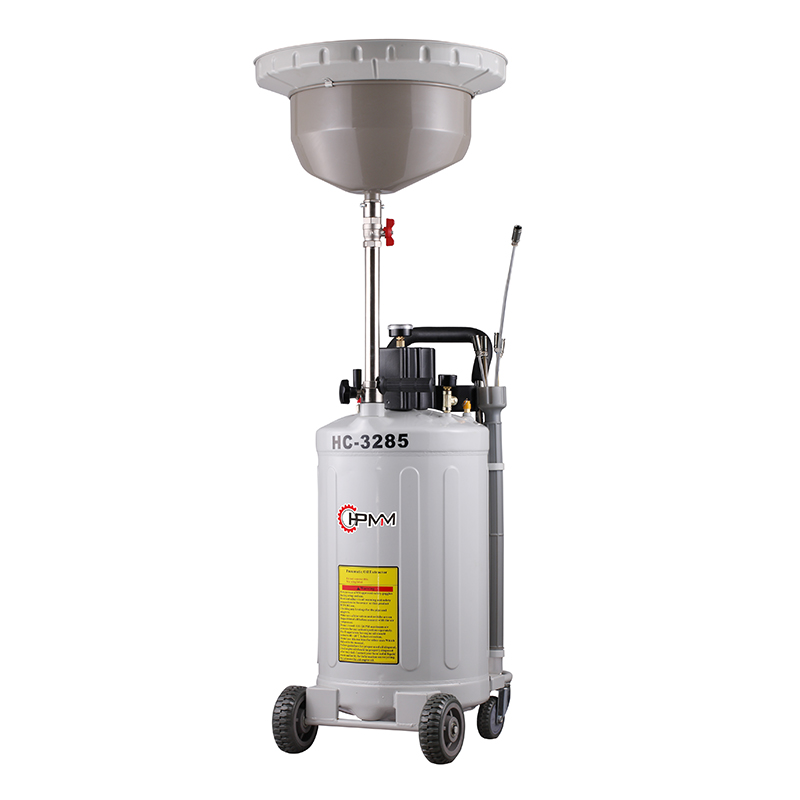

◆Pneumatic waste oil drainer and extractor
◆The tray’s up and down easy controled by an easy lift handle(Exclusive patent).
◆The product appearance has the exclusive patent.
Specification:
| Tank capacity | 80L |
| Collection bowl capacity | 20L |
| Air inlet pressure | 6-8Bar |
| Air inlet connection | 1/4” |
| Air pressure for oil discharge | 0.7~1Bar |
| Vacuum degree | -1~0Bar |
| Oil temperature range | 40-60℃ |
| Suction Speed(max.) | 6.5Liter/m |
| N/G weight | 26/29.5kgs |
| Package dimension | 550*450*1010mm |
