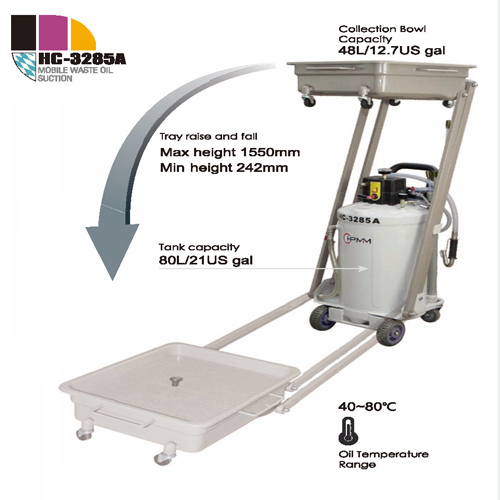

Product Description
Product function and description
- Compressed air is used as power source for all functions, ensure operational safety, environmental friendly and low consumption.
- Vacuum generation device to achieve high speed vacuum extraction, strong negative pressure capability.
- Various diameter of extraction probes are provided to fit the use of different cars.
- The machine is applies to extraction and temporary storage of all mechanical, lubricating oil. Strictly prohibit in extraction of brake fluid, gasoline, diesel, dismantle free cleaning fluid and any solvent that contains of Methanol, ketone and flammable, corrosive liquid etc.
Technical parameter
| Model | HC-3285A | |
| Air pressure(Bar) | 6~8 | |
| Oil ejection pressure (Bar) | 0.7~1.0 | |
| Air consumption (L/Min.) | 200 | |
| Vacuum (Bar) | 0~-1 | |
| Minimum height(mm) | Oil tank | 950 |
| Oil tray | 242 | |
| Maximum height(mm) | 1550 | |
| Oil tank storage (Liter) | 80 | |
| Oil tray volume (Liter) | 20 | |
| Oil temperature (℃) | 40~80 | |
| Outer box dimension(mm) | Oil tank | 570*540*1020 |
| Support shelf | 1310*100*80 | |
| Oil tray | 735*635*225 | |
| Oil extraction probes | 6pcs | |
| Cu, 1 PCS(mm) | Φ5*L700 | Extraction speed：1.9L/Min. |
| Cu, 1 PCS(mm) | Φ6*L700 | Extraction speed：3.7L/Min. |
| PVC,1 PCS(mm) | Φ5*L700 | Extraction speed：1.0L/Min. |
| PVC,1 PCS(mm) | Φ6*L700 | Extraction speed：2.0L/Min. |
| PVC,1 PCS(mm) | Φ8*L700 | Extraction speed：6.5L/Min. |
| PVC,1 PCS(mm) | Φ7*L1000 | Extraction speed：3.7L/Min. |
