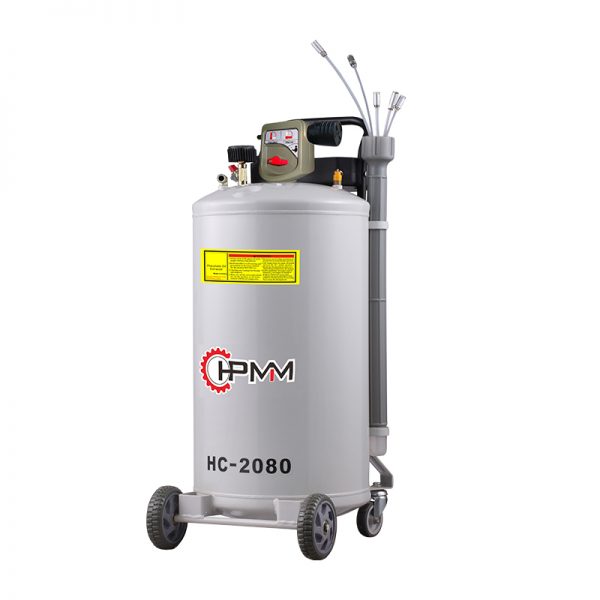

Product Description
Product description:
1.Fast vaccum speed, capable of high negative pressure, multi-purpose equipment.
2.High quality cylinder, higher intensity, high grade of transparency as well as high temperature resistance (able to withstand 80℃ & negative pressure without deforming). Transparent cylinder allows oil observation and measurement.
3.Use compressed air as power source; guarantee the safety in use, Eco friendly and low power consumption
4.Vacuum cylinder and oil tank at a same time, increase oil extraction speed
5.Different diameter of oil suction probes to meet the need of different type of cars
6.Height adjustable Oil tray lift, can be fix to desirable height
7.Can be used with other mechanical engine oil, lubricants as well as temporary storage. Brake fluid, gasoline, diesel and other liquid contains methanol and ketones or flammable is strictly prohibited.
Specification:
Functions: Remove and extract waste fluids or oil out from engine and etc. with flexible PVC tube and robust CU probe. Power from compressed air
| Air Inlet Pressure:： | 6～8bar/ 87～116PSI |
| Ejection pressure： | 0.7～1 bar/ 10～14PSI |
| Air Consumption:： | 150L/Min |
| Vacuum Degree: | 0～-1 bar /-14PSI |
| Tank Capacity: | 65L |
| Working Temperature： | 40～60℃ |
| Package： | oil tank/box |
| Carton size： | 470*400*940mm |
| Suction probes： | |
| Φ5*L800mm,(Cu,1 PCS) | Suction speed：1.9 L/Min. |
| Φ6*L800mm,(Cu,1 PCS) | Suction speed：3.2 L/Min. |
| Φ6*L700mm,(PVC,1PCS) | Suction speed：4.2 L/Min. |
| Φ8*L700mm,(PVC,1PCS) | Suction speed：6.2 L/Min. |
| Φ6*L800mm,(PVC,1PCS) | Suction speed：3.7 L/Min. |
| Φ8*L800mm,(PVC,1PCS) | Suction speed：5.2 L/Min. |
