Product Description

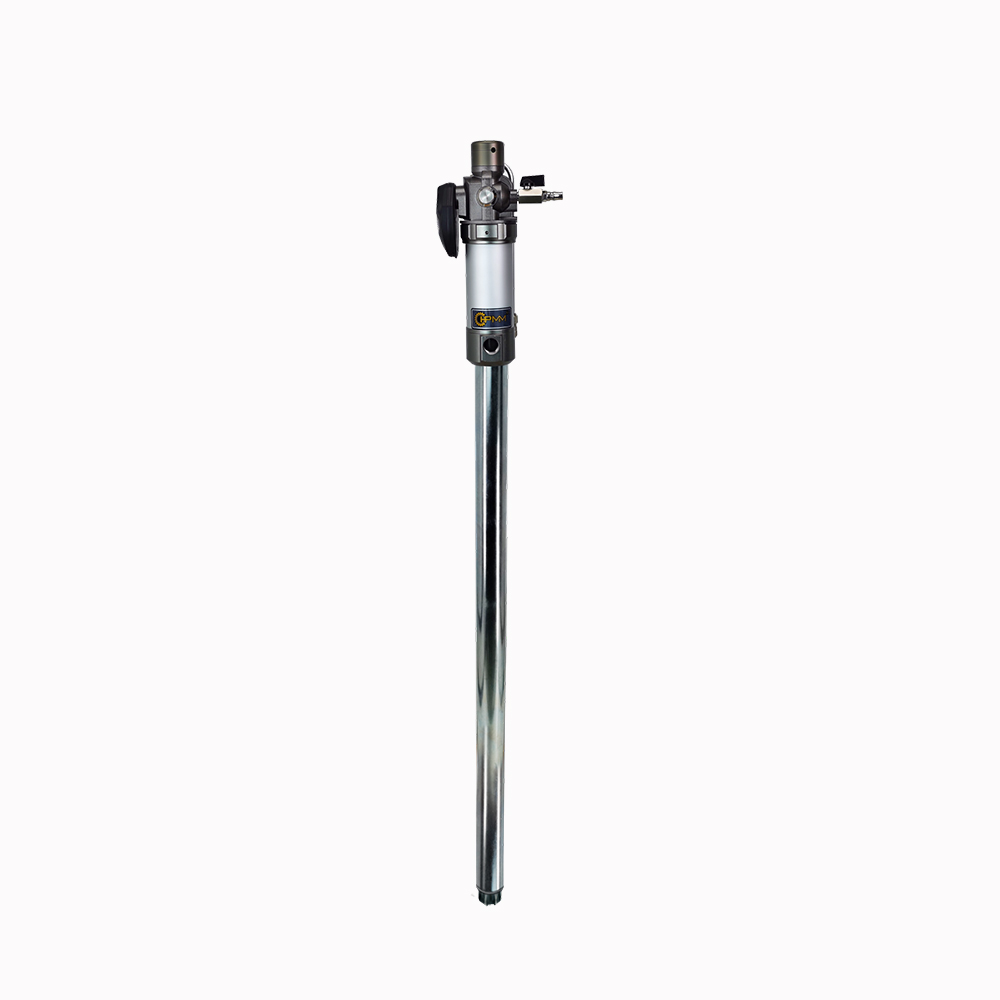

90031940 Pneumatic Oil Pumps are modular designs that Freely match the required combination, delivering fast & precise flow rates. This Smart design uses fewer parts for less pump wear & tear, making it easy to use & maintain. This pump is best suited for Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include motor oil, synthetic oil, hydraulic oil, grease, oil, and ATF.
Features：
1. Brand new pumping technique
Compared with the conventional technique, the new pumping unit provides a smoother and lower-noise operation than never.
Compression ratio: 3:1
Flow rate: up to 22L/Min.
Air pressure:4-8bar
Suctionpipe: Φ46mm
2. Modular design Freely match the required combination
PilotLamp
Muffler&Shield
Oil Mist Separator
Multi-purposed Recoder
3. Muffler&Shield
Not only a muffler
The muffler acts as ashield to guide the oil mist blowing direction to avoid corrosion of metal mechanisms
360°rotatable
4. Reach deeper
Available to extract THE MOST oil from the bottom of the tank by its specificpipe end design, a filter in cluded.
Depth of residual oil
Based on testing results
New model
Conventional model
5. Variety of color pilot lamps are available
Perfect partner to identify different brands of oil,and observe working state.
Pilotlamp powered by clean energy.
No electricity use,no power consumption.
6. Oil mistlubricator/regulator
1. Working pressure can be adjusted.
2. Equip this unit to make oil pumping process go more smoothly.
3. Ensure longer service life of oilp
7. Millions of storage capacity multi-purposed memory
1. Check usage record
2. Check working status
3. Millions of storage capacity
